Heavy-Duty Energy Storage Connector Design for BESS Factories

The rapid expansion of the global green energy landscape has transformed utility-scale battery deployment from an emerging technology into a critical pillar of grid stability. As massive lithium-ion battery integration scales globally, heavy manufacturing facilities, containerized system developers, and original equipment manufacturers (OEMs) face unique electrical infrastructure challenges. Running high-capacity battery cells continuously under immense electrical loads generates severe structural challenges. A single sub-par connection path can trigger catastrophic thermal runaway, immediate voltage drops, or system-wide power shutdowns. For engineering teams and project procurement directors, selecting a high-performance energy storage connector is the primary factor in securing long-term operational uptime and maximizing electrical safety.

Commercial battery energy storage systems (BESS) require robust power management, substantial load handling, and absolute resilience against environmental exposure. From containerized grid-stabilization batteries to multi-megawatt commercial solar arrays, interconnect interfaces must process continuous high-amperage power without experiencing localized resistance spikes. This engineering guide provides a detailed breakdown of heavy-duty power routing, advanced metallurgic designs, strict environmental protection standards, and international safety compliance benchmarks.

Specifying interconnect infrastructure for a containerized energy storage system (ESS) requires strict attention to raw physical and electrical laws. Unlike low-voltage industrial instrumentation, utility-scale battery banks run massive continuous current volumes through tight modular spaces, driving significant heat retention.

Amperage Demands Across Modular Frameworks

The overall current-carrying profile dictates the safety margins and physical layout of an industrial connection point. High-capacity power lines operate within defined load groups:

• 120A connector options: Deployed extensively for localized battery pack connector links, decentralized commercial setups, and automated indoor battery storage enclosures.

• 150A connector arrays: Utilized to bridge structural rack-to-rack connection setups, combining moderate footprint dimensions with heavy power distribution efficiency.

• 200A connector installations: Required for high-power centralized BESS connector panels, large solar storage connector distribution points, and heavy utility-scale infrastructure interfaces.

• The Systemic Danger: Running heavy continuous power through an underrated junction forces rapid degradation of the surrounding insulation, introducing severe arcing hazards.

High Voltage Insulation Optimization

Modern battery configurations frequently run operating voltage thresholds up to 1000V DC or higher to minimize system-wide transmission losses. Connector housings must feature specialized engineering plastics—such as UL94 V-0 flame-retardant polymers—with high dielectric strength to securely isolate these large electrical potential fields and prevent creeping current short circuits.

Low Contact Resistance: Controlling Thermal Energy

Contact resistance represents the microscopic physical friction present where male and female terminal pins engage. In heavy power loops, minimizing this parameter is crucial for efficiency.

Heat Accumulation (Watts) = Current² × Resistance

• Resistance <= 5mΩ: The industry benchmark for high-performance configurations, ensuring excellent power transmission with minimal thermal dissipation.

• Resistance > 10mΩ: Highly problematic for high-amperage duty cycles, presenting an immediate risk of thermal breakdown and melted components.

In a heavy-duty power connector array, the underlying terminal material determines overall transmission stability. While standard automation equipment often relies on gold plating for signal integrity, gold lacks the optimal properties required for massive continuous power routing.

[Solid Copper Core Pin] ---> [Barrier Shielding layer] ---> [Pure Silver Contact Surface]

Advanced high-capacity connection designs incorporate a specialized silver plated copper pin matrix due to the unique performance attributes of silver:

1. Industry-Leading Conductivity: Pure silver provides the lowest electrical and thermal resistance of any element, ensuring unrestricted electron migration with minimal energy loss.

2. Excellent Heat Dissipation: Localized thermal energy is drawn away from the contact junction and dissipated rapidly through the copper core, maintaining safe, stable temperatures under continuous peak load conditions.

3. Conductive Oxide Layers: When exposed to high temperatures, copper forms a highly resistive oxide barrier that spikes contact resistance. In contrast, silver oxide remains electrically conductive, preserving a clean transmission path throughout more than 500 mating cycles.

4. Thermal Stability: The combination of a high-purity copper substrate and dense silver plating allows these contacts to operate reliably across extreme industrial temperature thresholds from -40°C to +125°C.

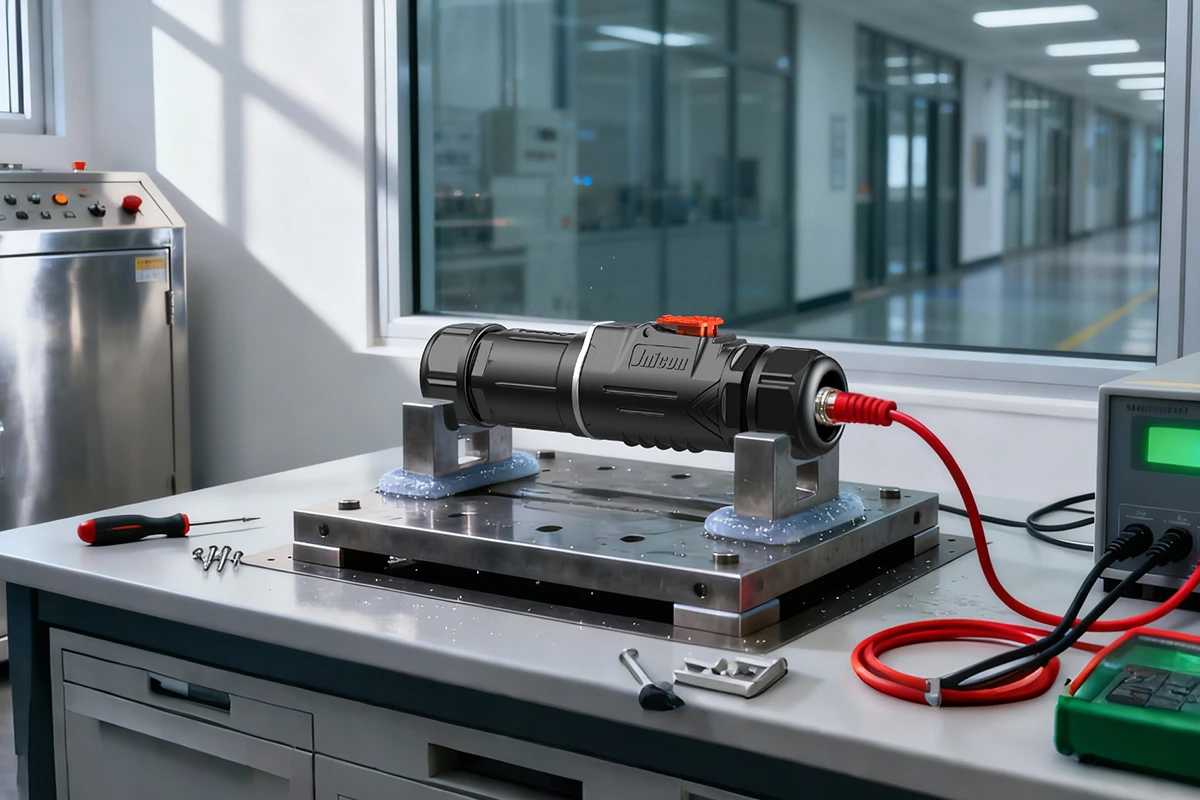

Heavy industrial manufacturing facilities and transportable containerized energy enclosures are subjected to persistent physical challenges, structural shifting, and low-frequency vibrations. A reliable high-amperage connection requires a robust locking interface to prevent micro-disconnections, which cause severe contact wear and electrical arcing.

Quick Lock & Push Lock Configurations: Automated Field Speed

Modern quick lock and push lock topologies secure immediately upon linear manual insertion, providing an audible and tactile "click" to confirm full engagement.

• Engineering Advantages: Streamlines large-scale factory assembly lines, minimizes human installation errors, and requires no specialized compression wrenches.

• Target Applications: Densely packed containerized battery modules where tight working spacing limits physical tool access.

Screw Lock Assemblies: Extreme Structural Resistance

The traditional screw lock format relies on threaded matching collars to securely bind the male plug and female receptacle halves together.

• Engineering Advantages: Provides massive axial pull-out resistance and total immunity to sudden mechanical shock or low-frequency seismic harmonics.

• Target Applications: Fixed external power distribution paths, industrial transformer interfaces, and permanent heavy utility connections.

Bayonet Lock Design: Visual Quarter-Turn Security

The bayonet lock design features a quarter-turn rotational collar that slides smoothly over matching locking pins on the receptacle housing.

• Engineering Advantages: Offers fast coupling times alongside clear visual validation of a locked connection, ensuring reliable field deployment.

• Target Applications: Mobile containerized storage arrays, portable testing links, and heavy material-handling charging connections.

Most utility-scale battery installations are deployed in harsh outdoor environments, such as desert solar fields, exposed wind farms, or high-humidity coastal grids. These settings expose infrastructure to extreme dust storms, driving rain, and intense seasonal condensation cycles. To safeguard high-voltage internals from catastrophic short-circuits and rapid galvanic corrosion, a true high current waterproof connector design is mandatory.

Implementing a certified IP67 connector configuration provides comprehensive environmental defense:

• Hermetic Condensation Defense: High-performance waterproof shells integrate compression-fit fluorosilicone O-rings and internal sealing gaskets. This prevents moisture from being siphoned past the outer housing during sudden temperature drops, which create a vacuum inside the enclosure.

• Particulate Ingress Prevention: The solid physical alignment completely blocks ultra-fine conductive sand and dust particulates from settling onto the silver-plated contacts, preventing arcing hazards and maintaining optimal transmission efficiency.

For global procurement managers and large-scale manufacturing facilities, sourcing loose connector components and requiring field technicians to manually strip, crimp, and insulate thick power cables on-site introduces severe quality risks. Manual crimping often leaves microscopic air gaps that lead to localized resistance spikes, heat retention, and loose connections under vibration.

Specifying a factory-built custom cable assembly straight from the manufacturer provides concrete operational benefits:

• Gas-Tight Mechanical Crimping: Factory assembly lines leverage automated pneumatic crimping systems to achieve ideal material deformation on heavy copper wire strands. This guarantees uniform contact compaction and maximum pull-out resistance.

• Low-Pressure Overmolding: Liquid polymer is injected directly over the rear connector cavity and the cable jacket, creating a single, hermetically sealed component that completely blocks liquid ingress and provides robust strain relief.

• 100% Automated Testing: Every turnkey cable harness undergoes automated high-voltage isolation checks and continuous contact resistance validation before leaving the facility, ensuring zero-defect installation on your production floor.

When major industrial enterprises and commercial project developers evaluate an interconnect partner for an international energy storage installation, regulatory compliance certificates are mandatory requirements. Uncertified hardware exposes your operation to severe safety liabilities, insurance validation rejections, and customs border delays.

UL Certified Connector Metrics

A UL certified connector has undergone rigorous laboratory validation against strict North American safety standards. Testing certifies that the engineering polymers maintain high flame-retardant performance under thermal stress, and the internal insulation safely contains the maximum rated voltage without experiencing dielectric breakdown.

TUV Certified Connector Metrics

A TUV certified connector confirms complete compliance with strict European performance and durability criteria. This independent third-party testing verifies that the connector's stated current handling capacities, environmental IP ratings, and mechanical cycle lifespans reliably match real-world operational profiles[cite: 2, 3].

Standardizing on certified hardware protects your high-value equipment assets, ensures smooth integration with international power grids, and simplifies global compliance audits.

This comprehensive table matches specific engineering criteria across different high-capacity product groups to streamline your component selection process:

Optimizing global energy storage infrastructure requires carefully balancing high-purity contact metallurgy, robust mechanical locks, absolute weatherproofing, and verified global safety certifications. Settling for unverified, low-grade connection hardware introduces significant risk into your battery assembly line, leading to costly unexpected downtime and field failures.

As an R&D-driven leader in heavy industrial connectivity, Teleconix manufactures high-performance waterproof solutions engineered to safeguard your operations. Our advanced facility features a dedicated team of 55+ senior R&D engineers, a global portfolio of nearly 300 patents, and production lines that deliver premium UL certified and TUV certified solutions at factory-direct pricing. From compact M series circular connections to high-amperage BESS connector panels and turnkey custom overmolded cable assemblies, we engineer every component for maximum reliability.

Optimize your system infrastructure and eliminate battery connection failures today. Contact our engineering support team directly to submit an operational inquiry, request technical blueprints, or secure free product samples for your next deployment.
