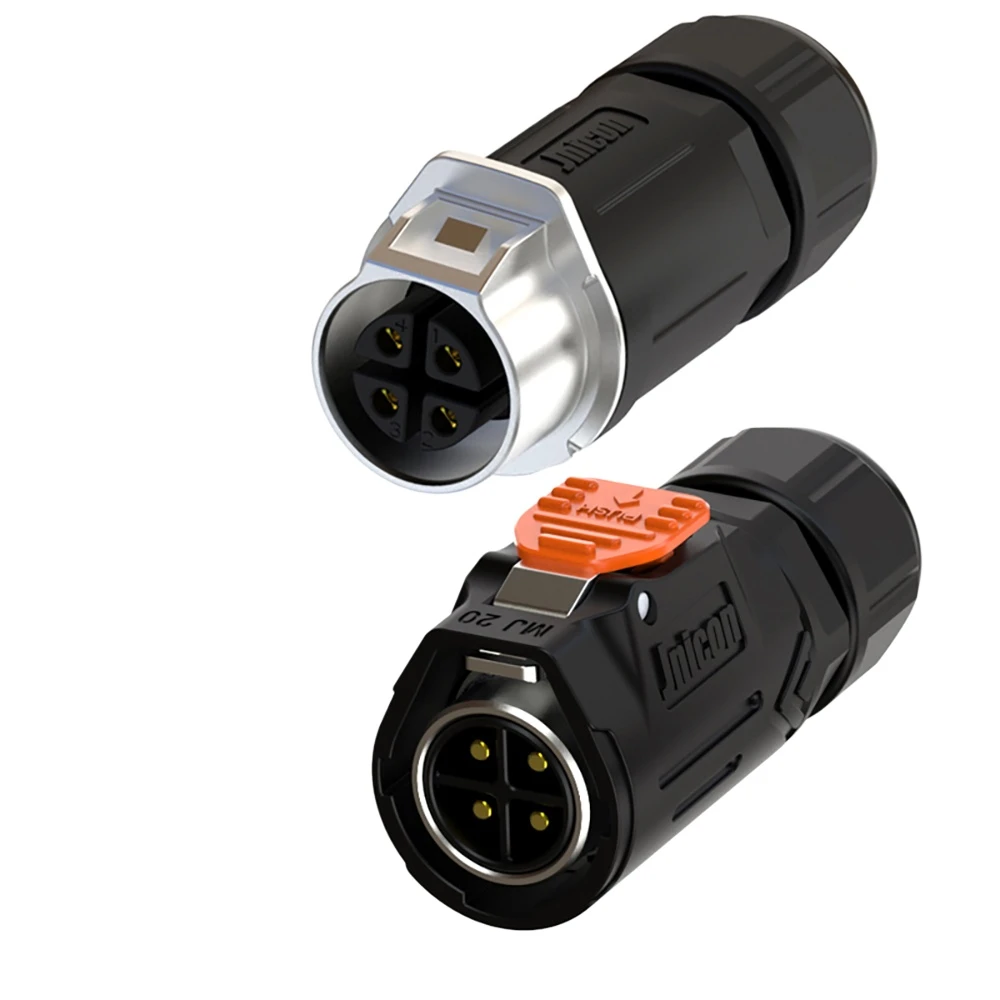

MJ20 4-Pin Waterproof Connector 20A Quick Lock for Power Distribution
20A quick-lock waterproof connector for power distribution and outdoor lighting, with IP67 protection and reliable power delivery.

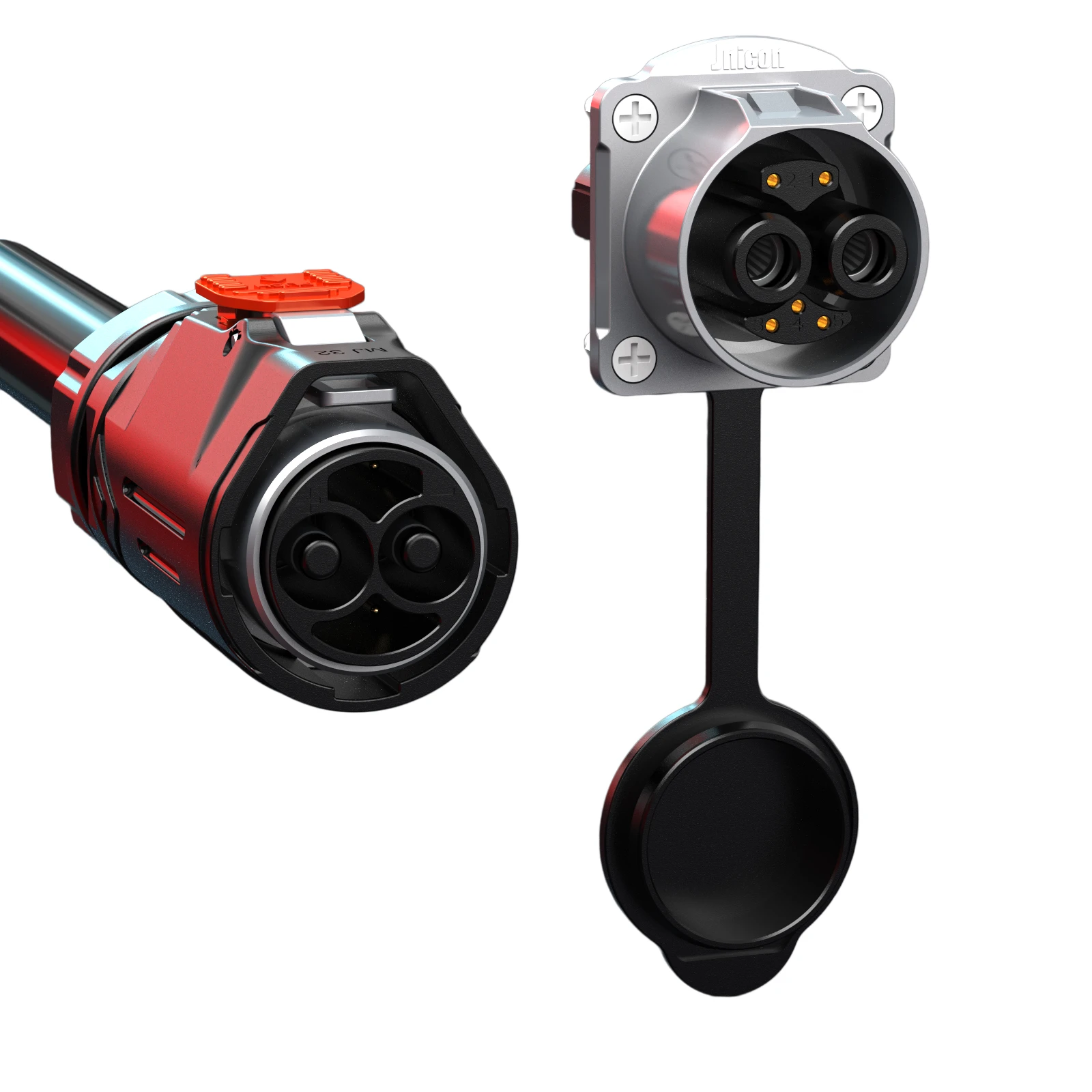

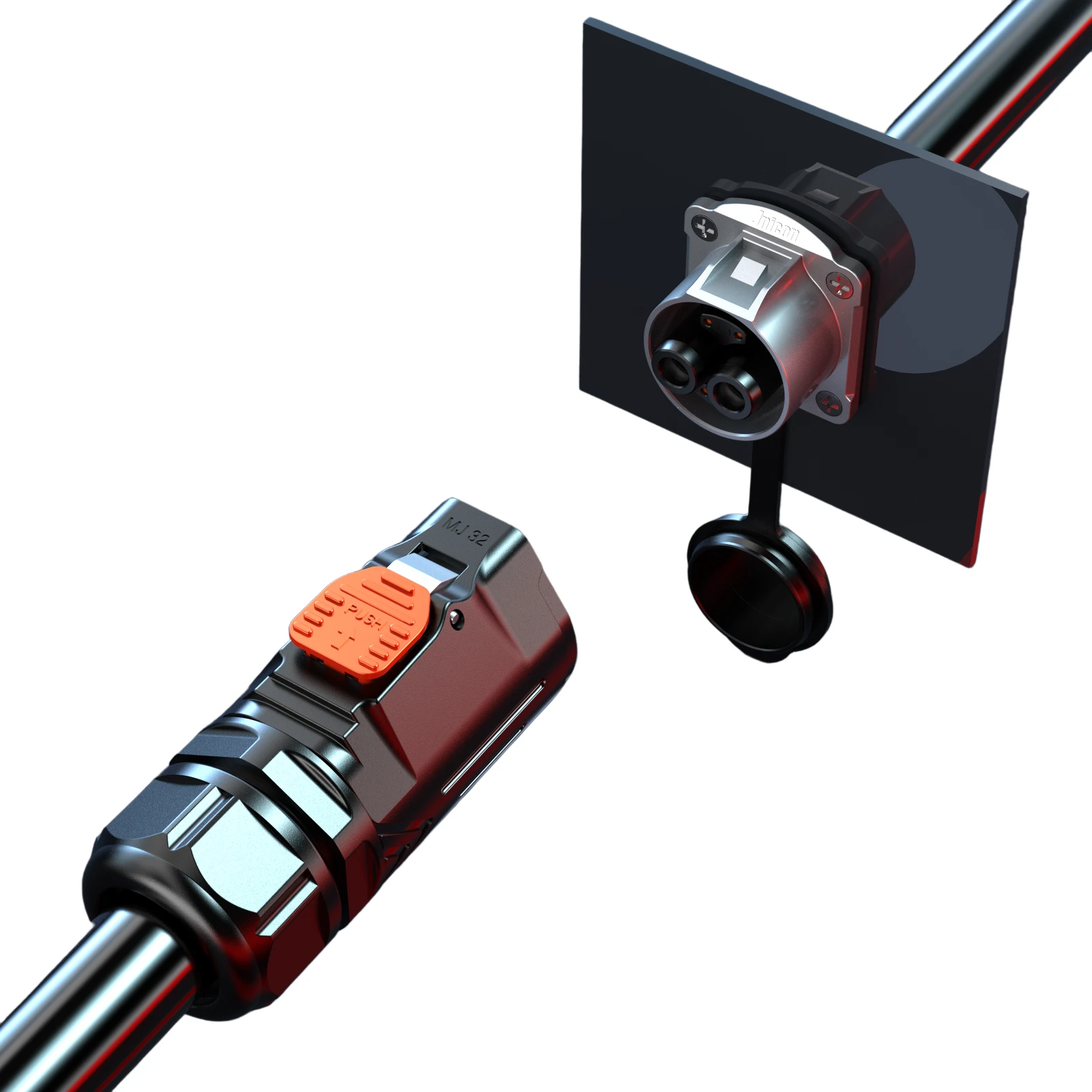

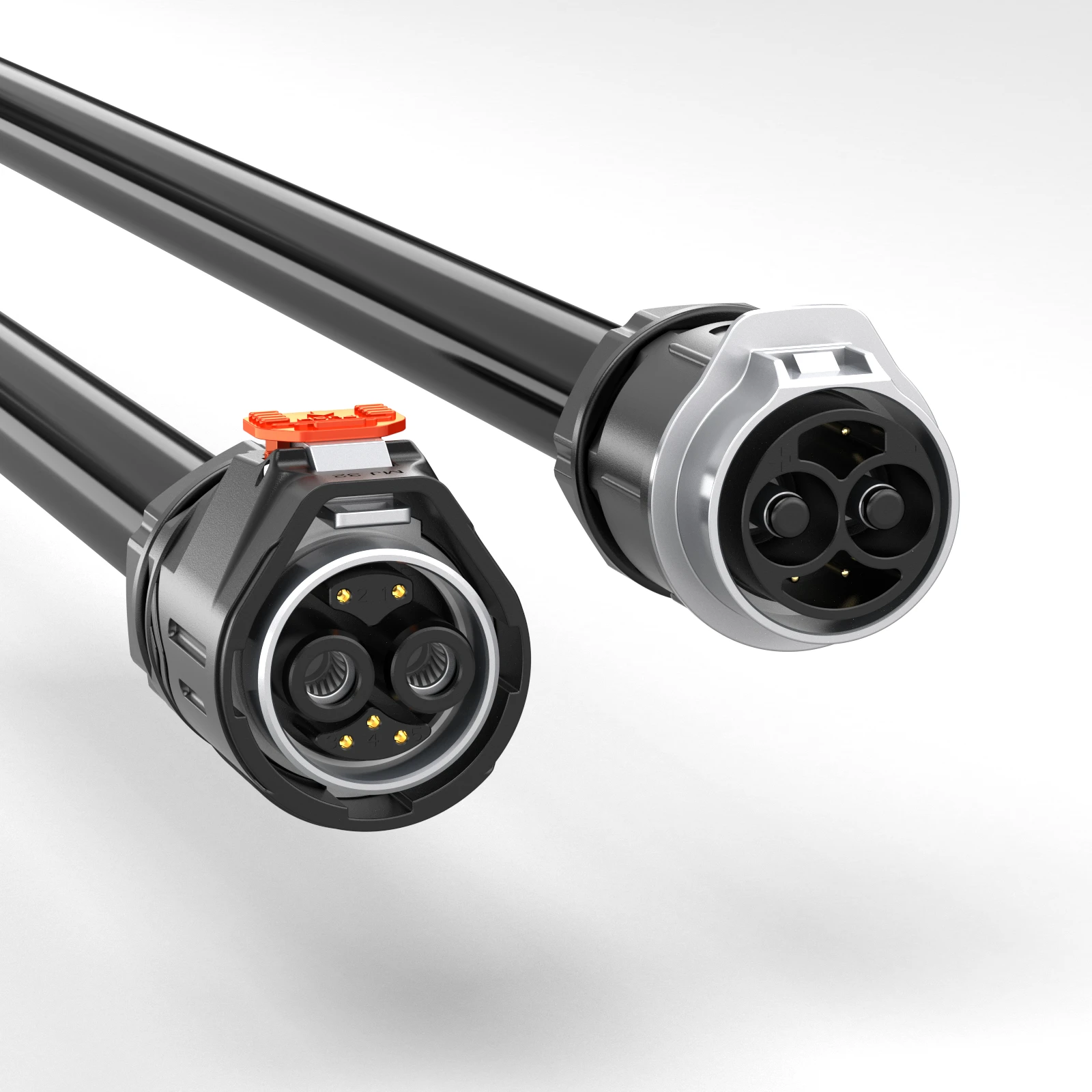

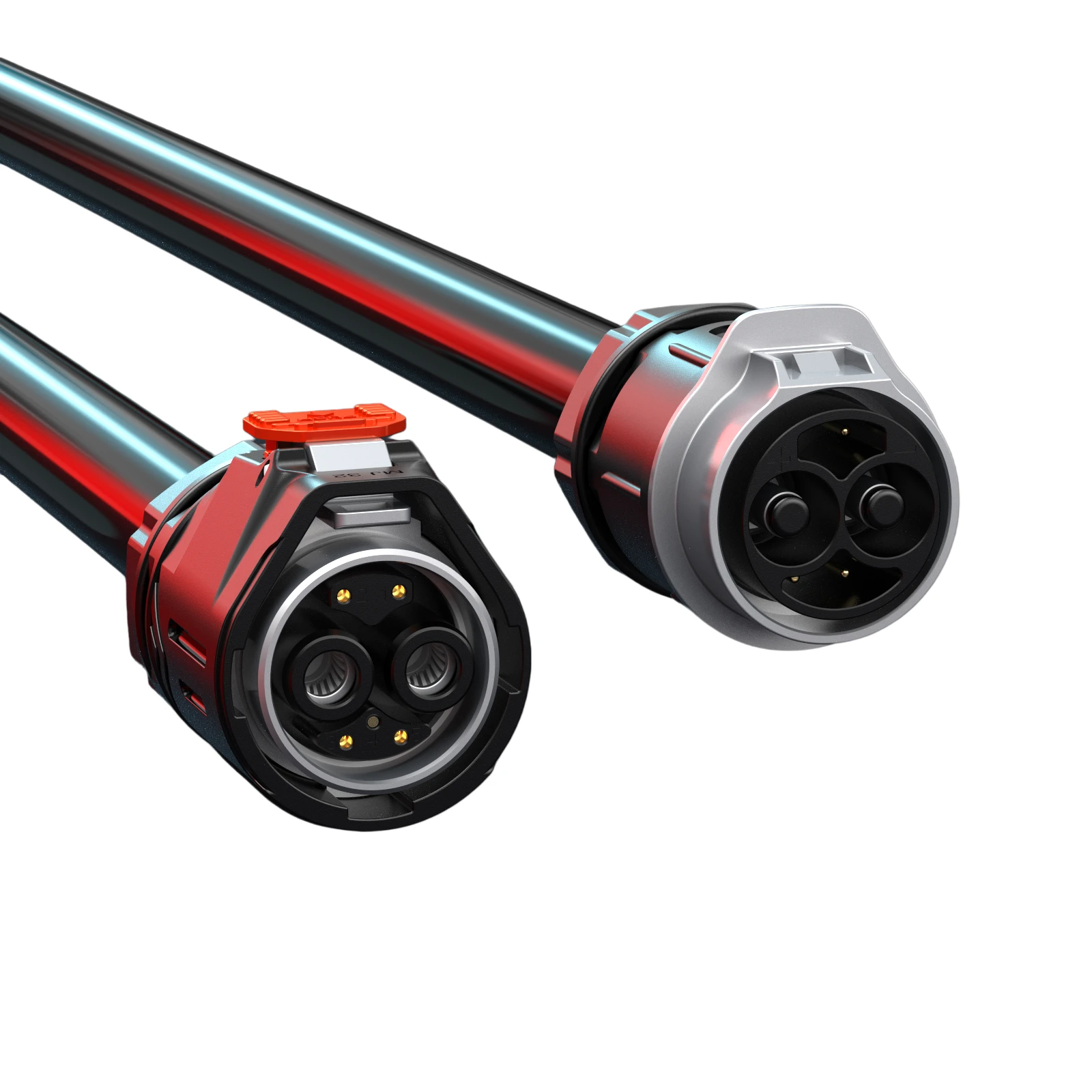

MJ32 2+5 Pin Hybrid Waterproof Connector 120A for BMS Signal Transmission
120A hybrid waterproof connector with power and multi-signal transmission, designed for battery management systems and industrial controls.
Product Overview
-
120A Power + 10A Signal – Hybrid connector with 120A power pins (6.0mm) and 10A multi-signal pins (1.5mm gold-plated).
-
Quick Lock Mechanism – Tool-free connection with audible feedback, anti-vibration for secure locking.
-
IP67 Waterproof Protection – Fully sealed against water and dust for demanding environments.
-
BMS and Industrial Control – Designed for battery management systems, hybrid signal transmission, and industrial controls.
-
Global Certifications – UL, TUV, CE, and RoHS certified.
Product Specifications
| Product Details | Specification 1 | Specification 2 | Specification 3 | Specification 4 |
|---|---|---|---|---|
| Pin number | 2 | 3 | 4 | 2+5 |
| Pin diameter X number | 6.0 | 4.0 | 4.0 | 6.0+1.5 |
| Current rating | 120A | 80A | 80A | 120A+10A |
| Voltage rating | 600V | 600V | 600V | 600V+60V |
| Withstanding voltage | 3000V | 2000V | 2000V | 2000V |
| Cable Gauge | 4mm²–25mm²(10–3AWG) | 4mm²–16mm²(10–5AWG) | 4mm²–16mm²(10–5AWG) | 1.0mm²–6mm²(18–9AWG) |
| Diameter Range | MAX Φ25.0mm | MAX Φ25.0mm | MAX Φ25.0mm | MAX Φ25.0mm |
| Protection Level | IP67 | IP67 | IP67 | IP67 |
| Connecting mode | QuickLock | QuickLock | QuickLock | QuickLock |
| Prevent the combustion level | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 |
| Operating temperature | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ |
| Certification | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS |
Resource Downloads
Specification for MJ32 Series
Product Advantages
High-Reliability Waterproof & Dustproof Protection
All products in our series feature high-reliability waterproof and dustproof protection. IP67 certified models withstand temporary immersion up to 1 meter for 30 minutes. IP68 certified models are designed for prolonged submersion in demanding environments (specific depth and duration refer to product datasheet). For applications requiring frequent high-pressure high-temperature washdown — such as food processing, agricultural machinery, and heavy equipment — IP69K protection is available as a customizable option.
Note: IP69K is an optional custom feature and is not standard across all models.
Wide Operating Temperature Range
Our connectors operate reliably across a broad temperature range from -40°C to +105°C (with certain energy storage series reaching up to +125°C). This ensures stable performance in extreme climates — from freezing winters to scorching summers — making them suitable for desert, snowy, high-altitude, and other harsh environmental conditions.
High-Strength Flame-Retardant Housing
The housing is constructed from high-performance engineering plastic with UL94 V-0 flame-retardant certification, ensuring self-extinguishing properties in case of fire. The structural design also provides impact resistance, protecting internal precision terminals from accidental collisions and mechanical shocks in industrial environments.
High Mating Cycle Durability
Our connectors are rated for 500+ mating cycles, validated through rigorous plug-and-unplug testing. In frequent connection and disconnection scenarios, they maintain stable contact performance and consistent electrical reliability — effectively reducing maintenance frequency and replacement costs over the product lifecycle.
Related Products

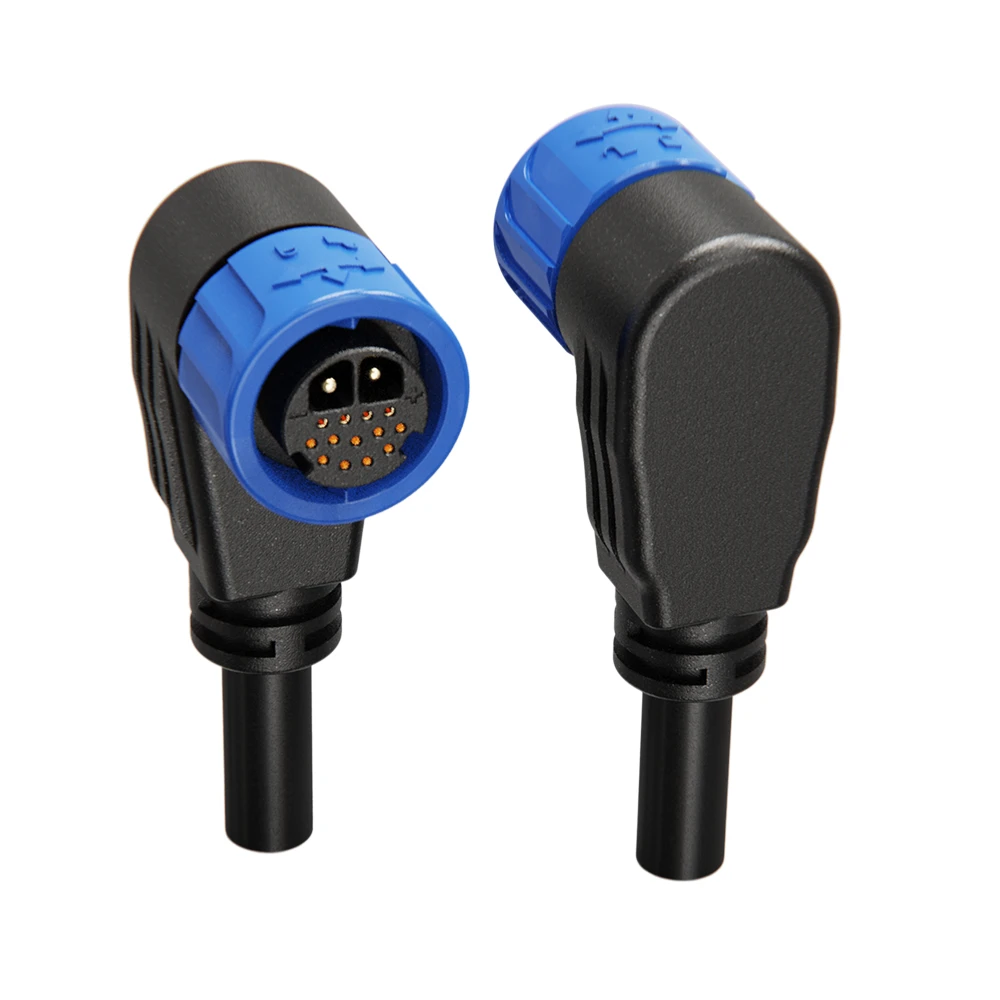

M23 15-Pin Signal Waterproof Connector 20A+5A Push Locking for Sensors & Data
15-pin high-density signal connector with 20A power and 5A signal contacts, push-locking and IP67-rated for sensor networks and data transmission.

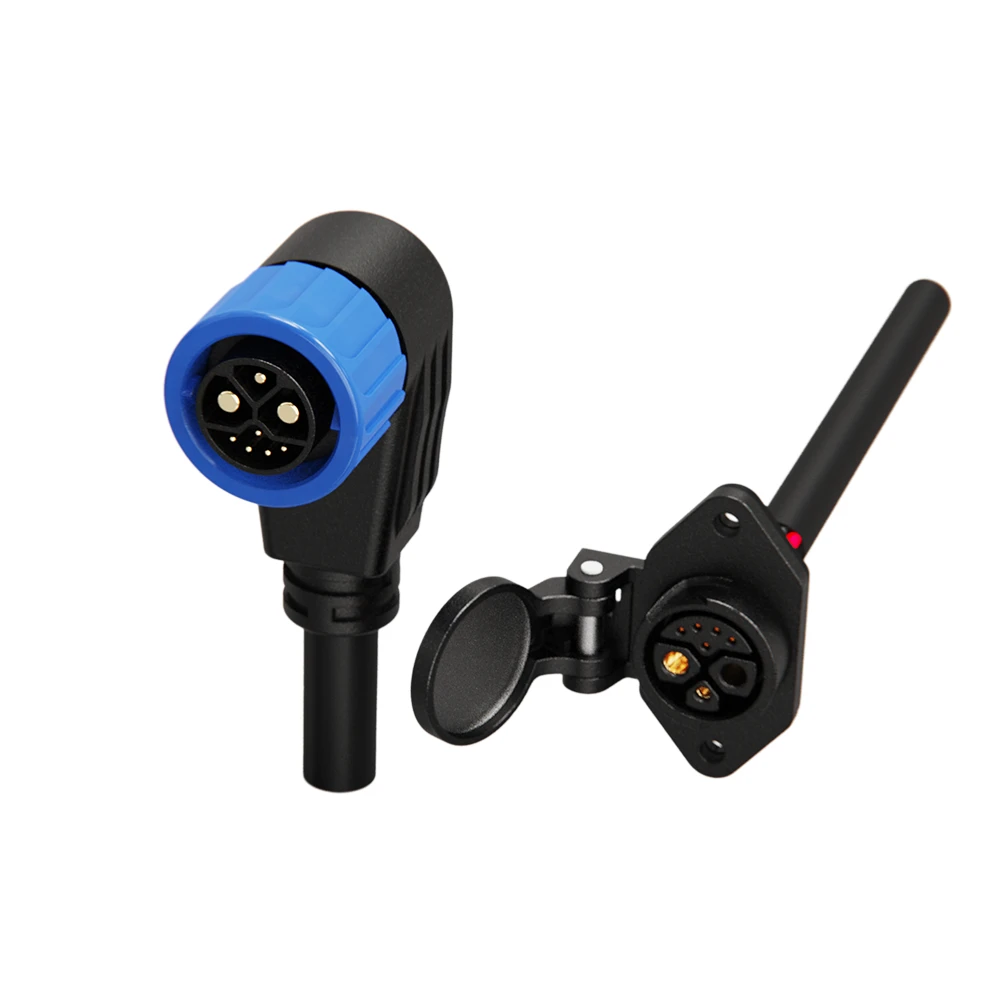

M23 8-Pin Hybrid Waterproof Connector 50A+15A+5A Push Locking with Multi-Voltage Support
50A+15A+5A multi-voltage hybrid push-locking waterproof connector with three contact sizes for complex industrial control and power distribution.

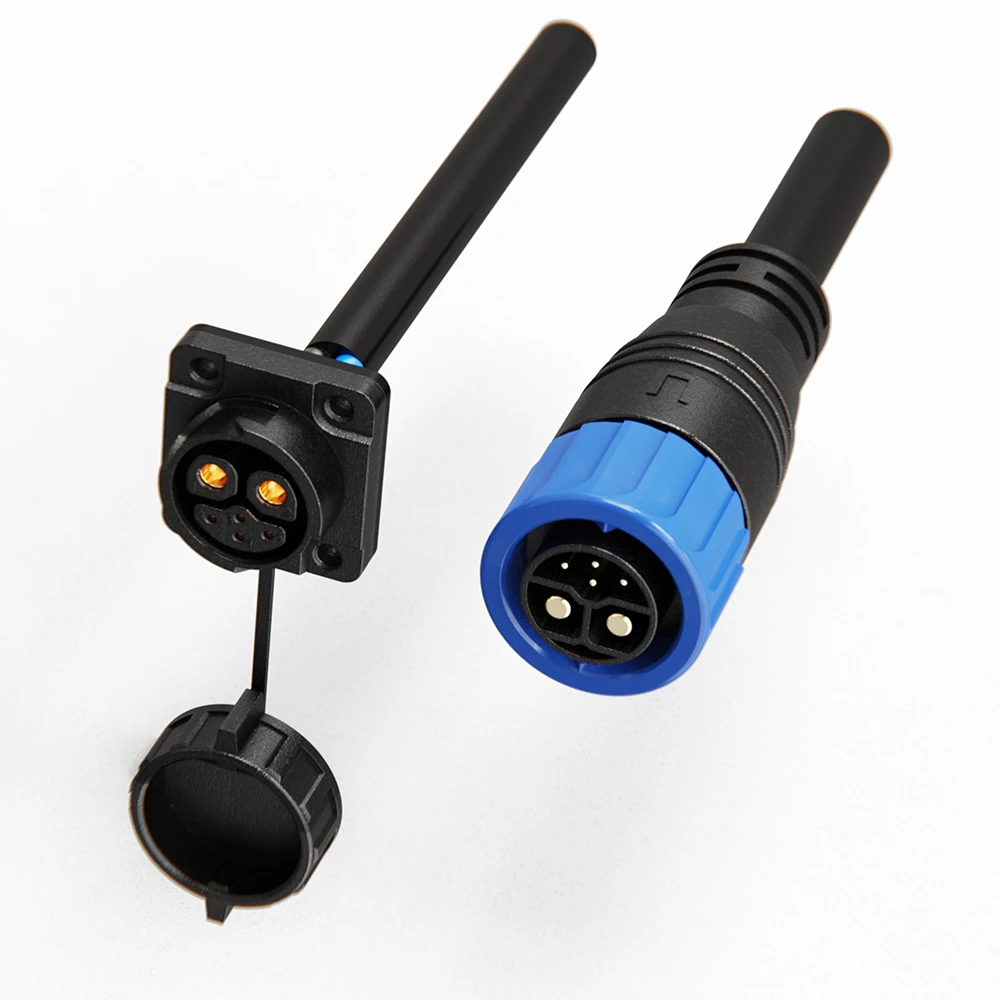

M23 6-Pin Hybrid Waterproof Connector 50A+5A Push Locking for Power & Signal
50A+5A hybrid push-locking waterproof connector with IP67 rating, combining power and signal transmission for industrial automation and energy systems.

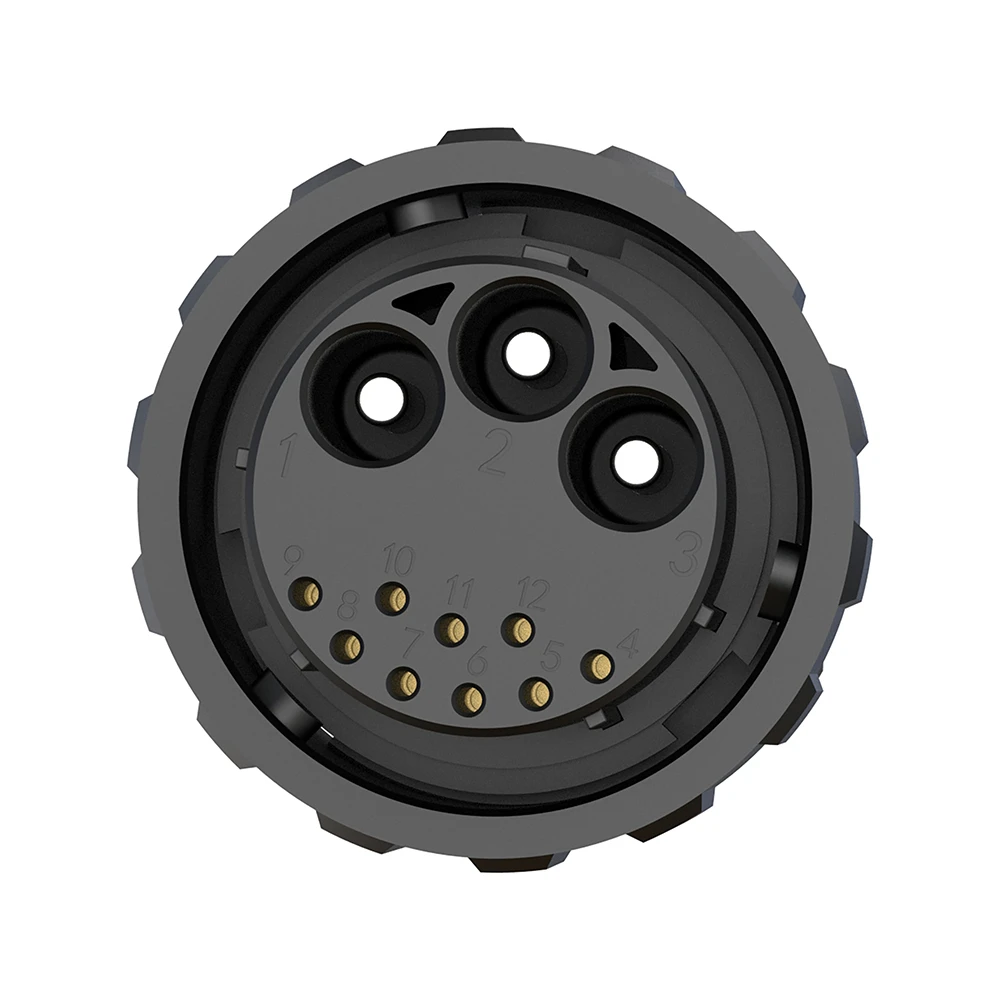

M40 3+9 Pin Hybrid Waterproof Connector for Control Systems
50A+10A hybrid bayonet lock waterproof connector for industrial control and signal transmission.

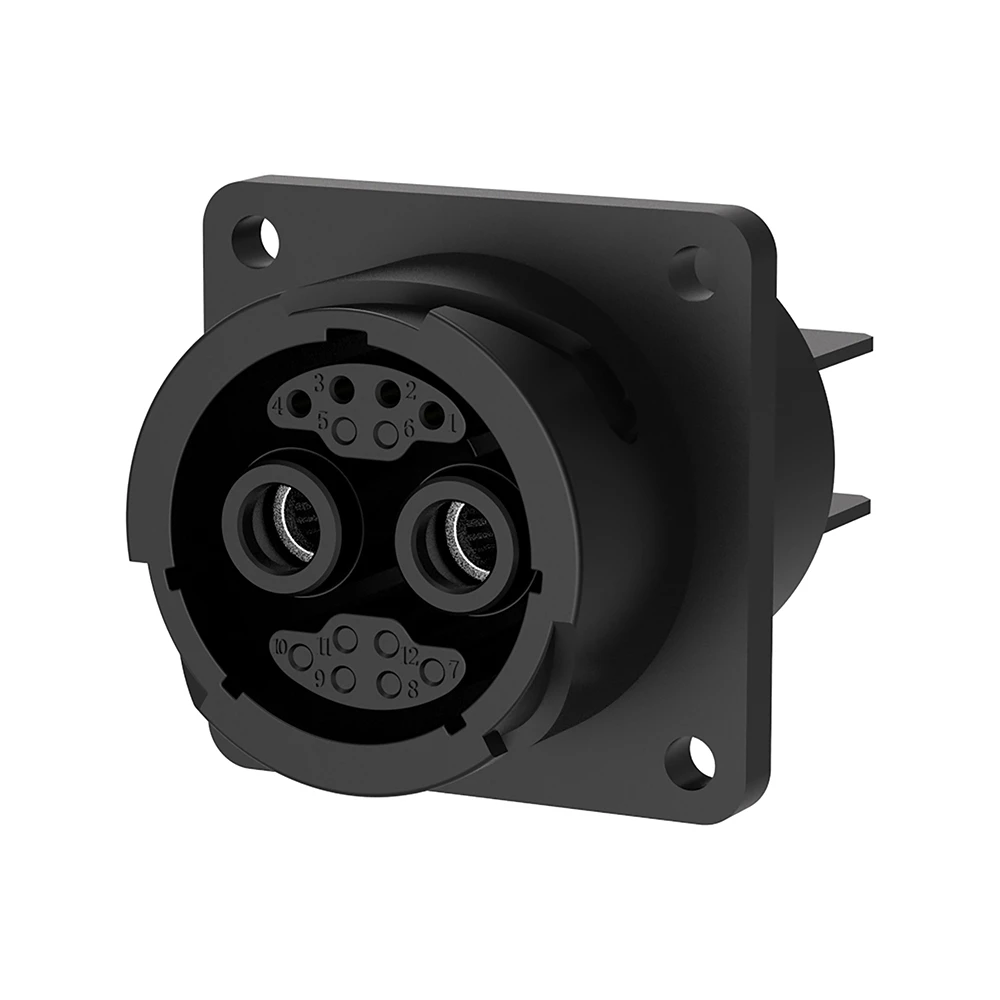

M40 2+4 Pin Hybrid Waterproof Connector for Power and Signal
120A+10A hybrid bayonet lock waterproof connector combining power and signal in one compact design.

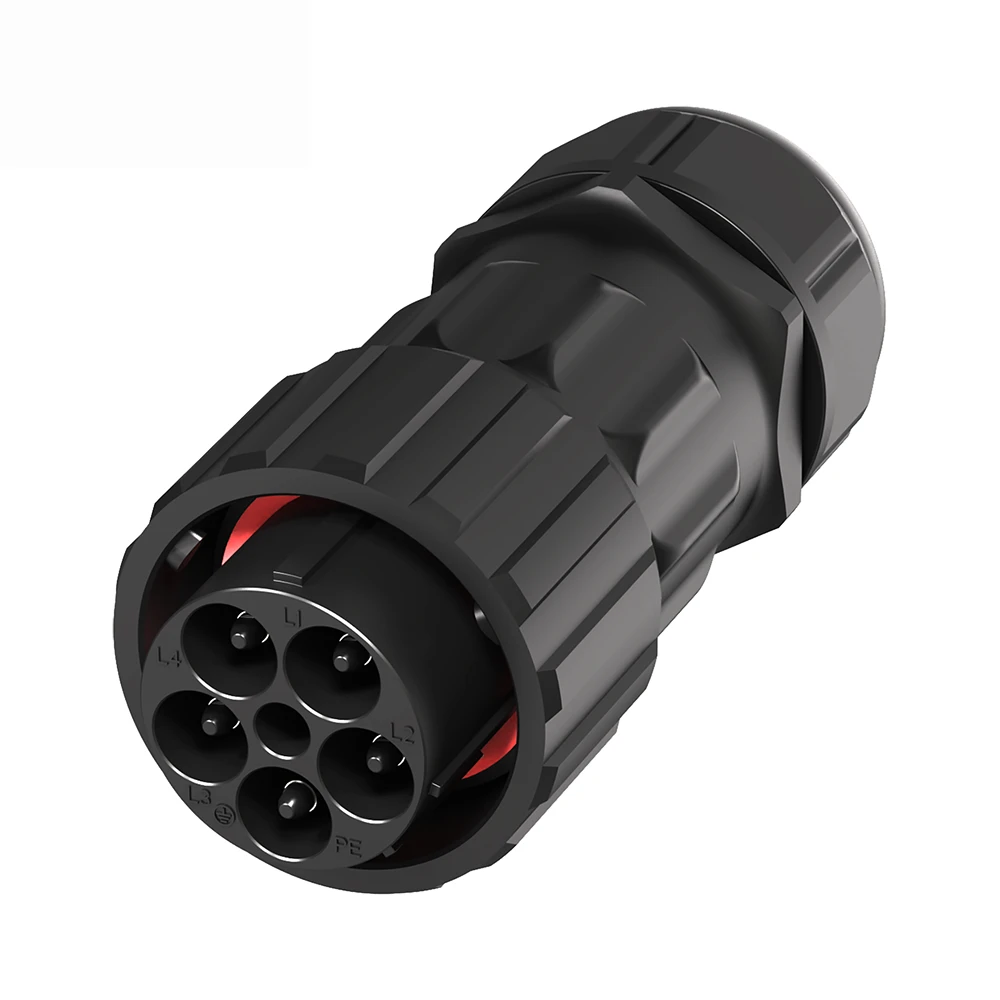

M40 5-Pin Waterproof Connector 50A Bayonet Lock for Industrial Power
50A bayonet lock waterproof connector for industrial power and automation, with IP67 protection and reliable performance.

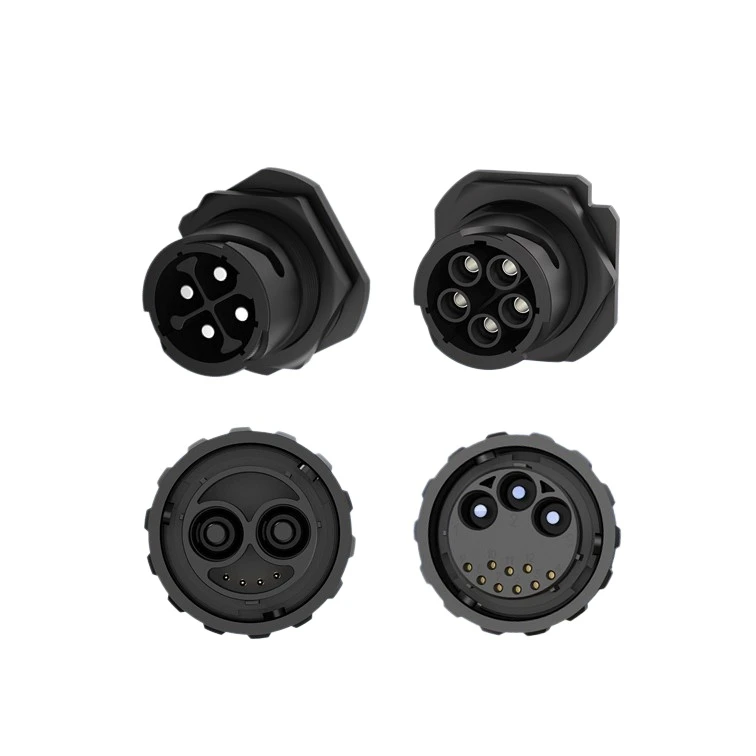

M40 4-Pin Waterproof Connector 120A Bayonet Lock for EV Charging
120A bayonet lock waterproof connector for EV charging and energy storage, with IP67 protection and reliable power transmission.

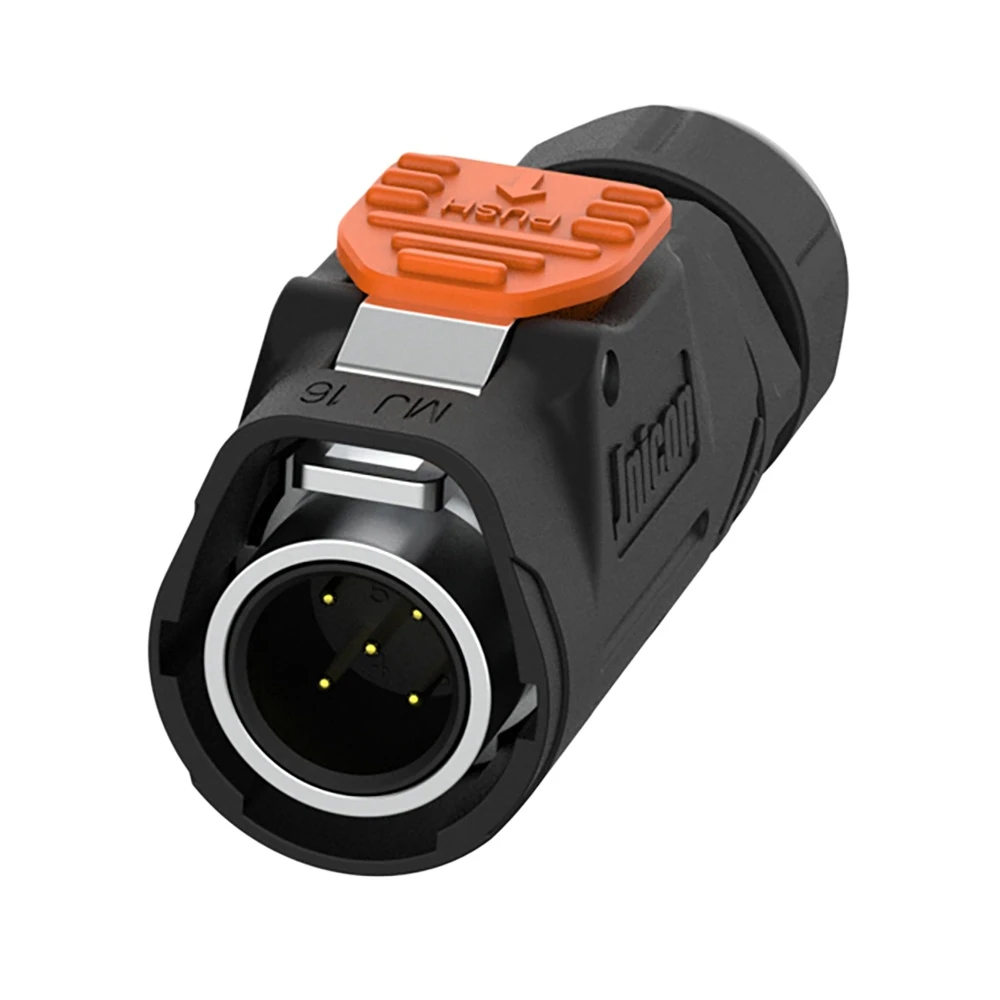

MJ16 5-Pin Waterproof Connector 5A Quick Lock for Signal Transmission
5A quick-lock waterproof connector for signal transmission and sensor networks, with IP67 protection and reliable data communication.

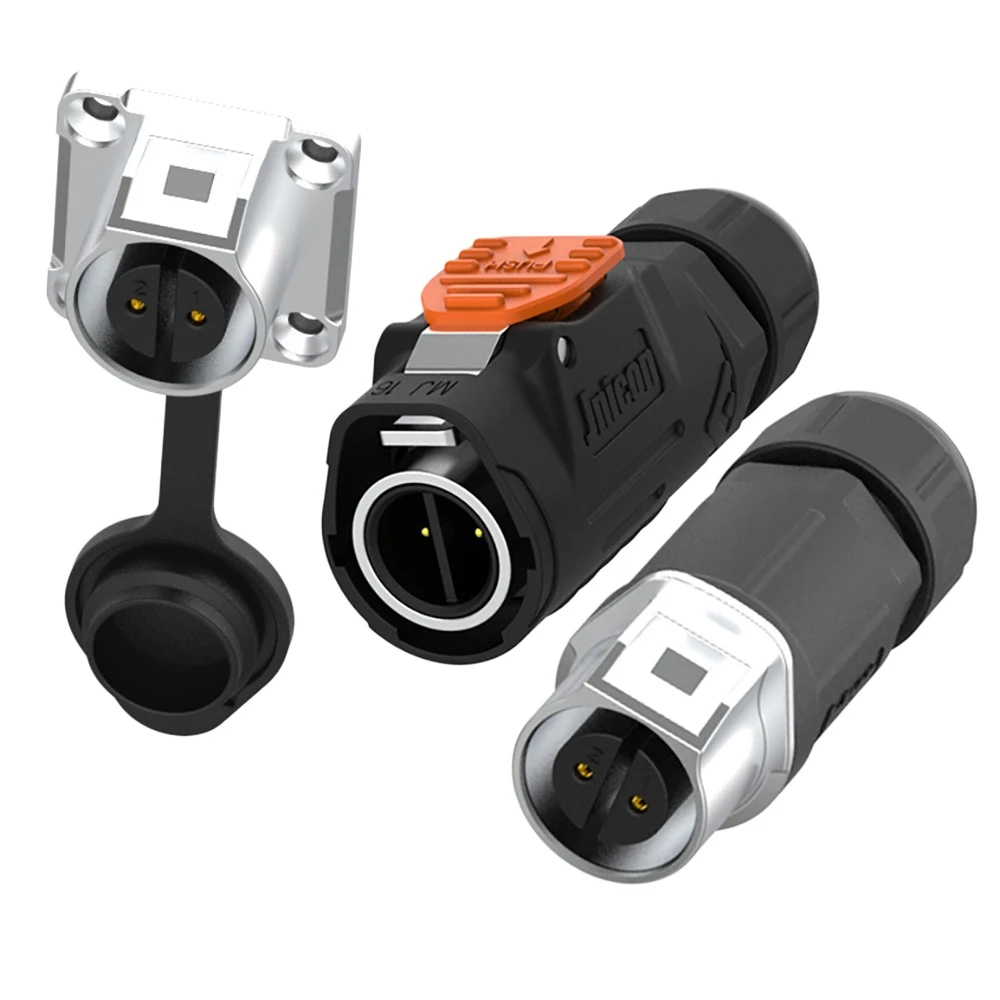

MJ16 2-Pin Waterproof Connector 10A Quick Lock for Industrial Automation
10A quick-lock waterproof connector for industrial automation and sensor systems, with IP67 protection and reliable signal transmission.

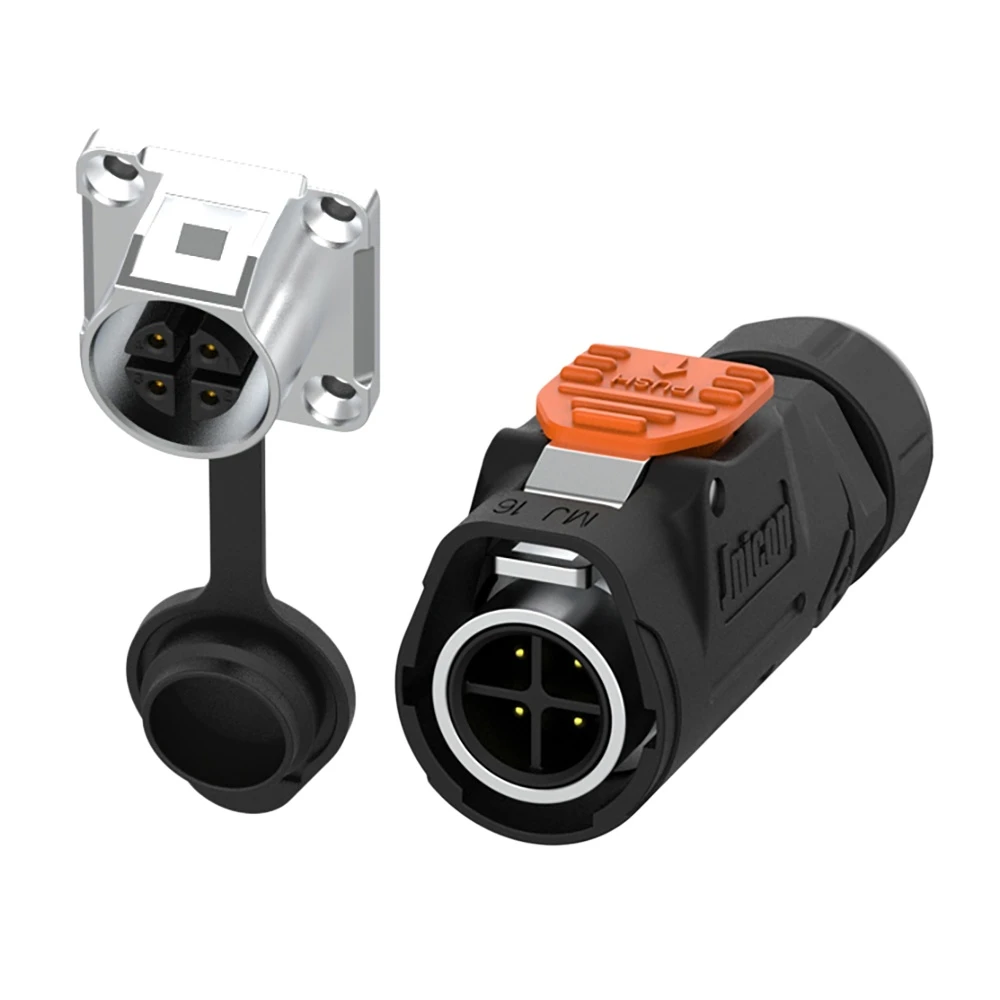

MJ16 4-Pin Waterproof Connector 10A Quick Lock for Control Systems
10A quick-lock waterproof connector for control systems and automation equipment, with IP67 protection and reliable performance.
MJ32 2-Pin Waterproof Connector 120A Quick Lock for EV Charging
120A quick-lock waterproof connector for EV charging and energy storage, with IP67 protection and silver-plated contacts.

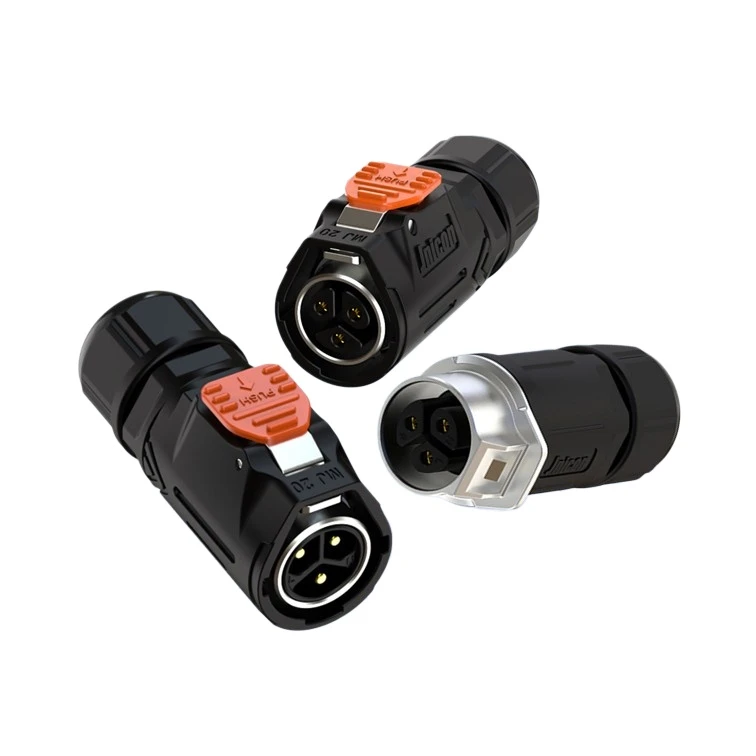

MJ20 3-Pin Waterproof Connector 20A Quick Lock for Security Systems
20A quick-lock waterproof connector for security systems and landscape lighting, with IP67 protection and reliable performance.

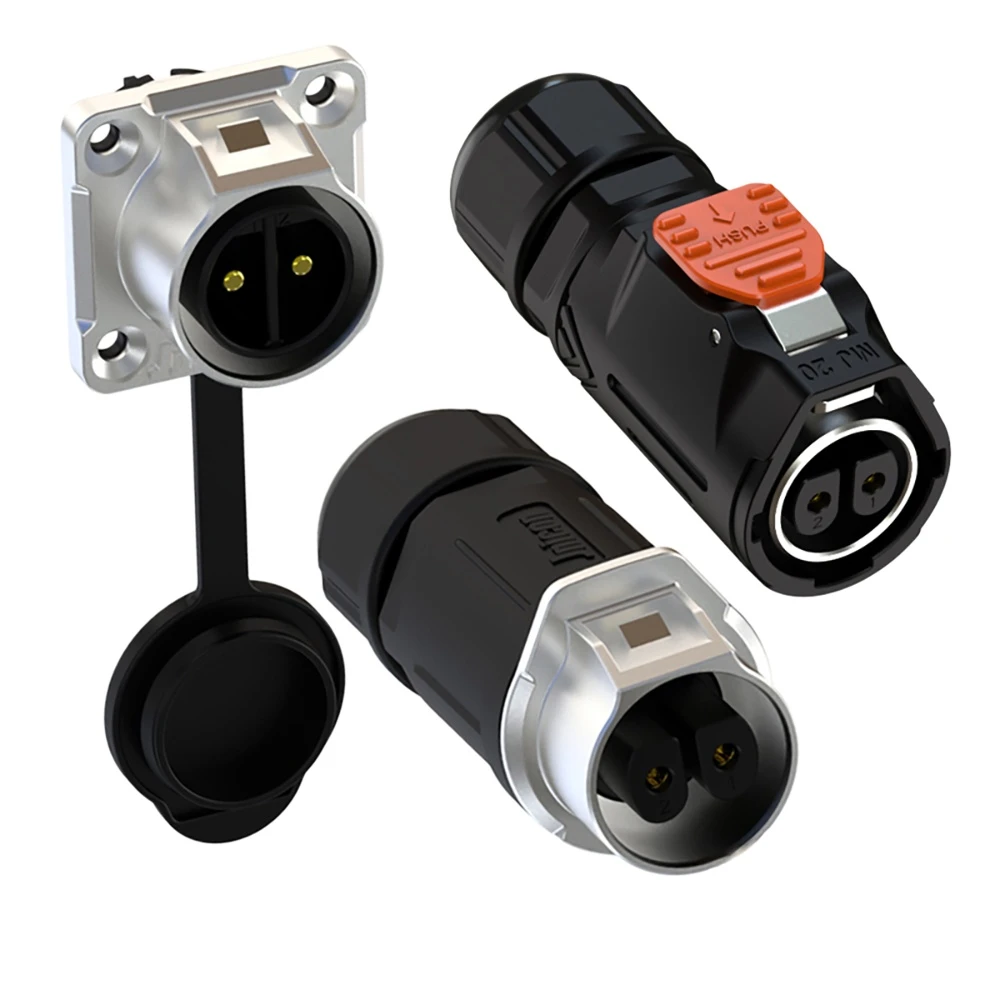

MJ20 2-Pin Waterproof Connector 20A Quick Lock for Outdoor Lighting
20A quick-lock waterproof connector for outdoor lighting and security systems, with IP67 protection and reliable power transmission.

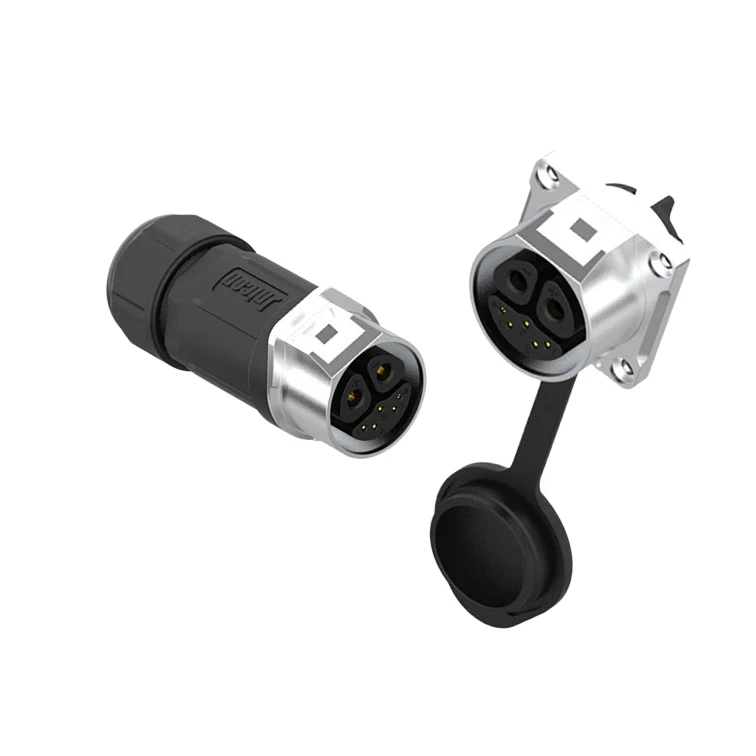

MJ24 2+5 Pin Hybrid Waterproof Connector for Power and Signal
Hybrid waterproof connector combining 50A power and 5A signal in one compact design for smart lighting and control systems.

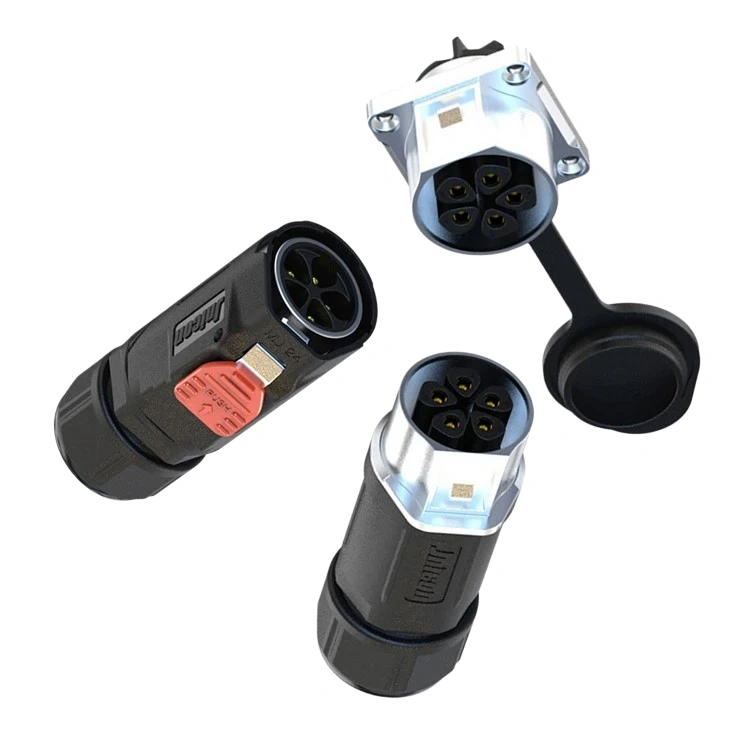

MJ24 5-Pin Waterproof Connector 30A Quick Lock for Signal Transmission
30A quick-lock waterproof connector for signal transmission and control systems, with IP67 protection.

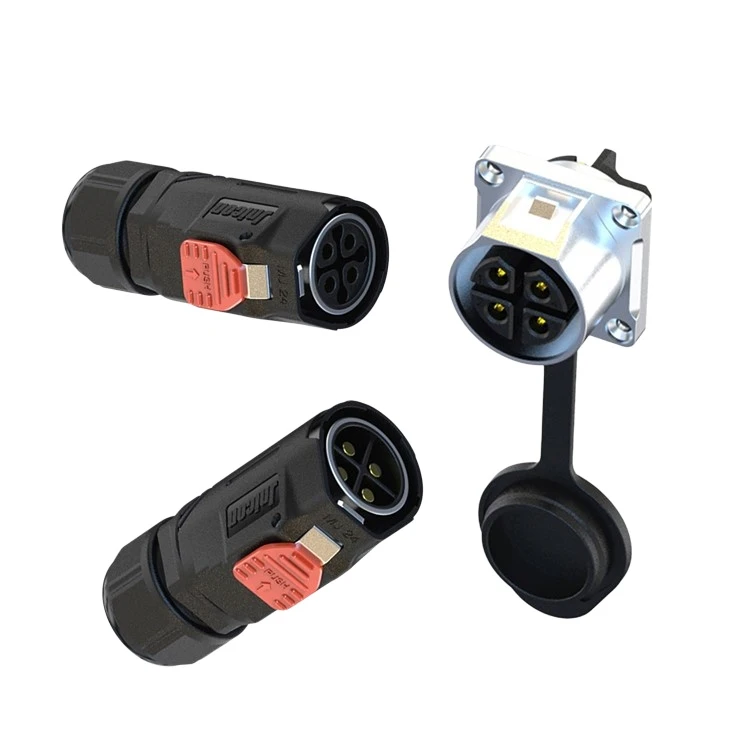

MJ24 4-Pin Waterproof Connector 30A Quick Lock for Control Systems
30A quick-lock waterproof connector for control systems and industrial automation, with IP67 protection.

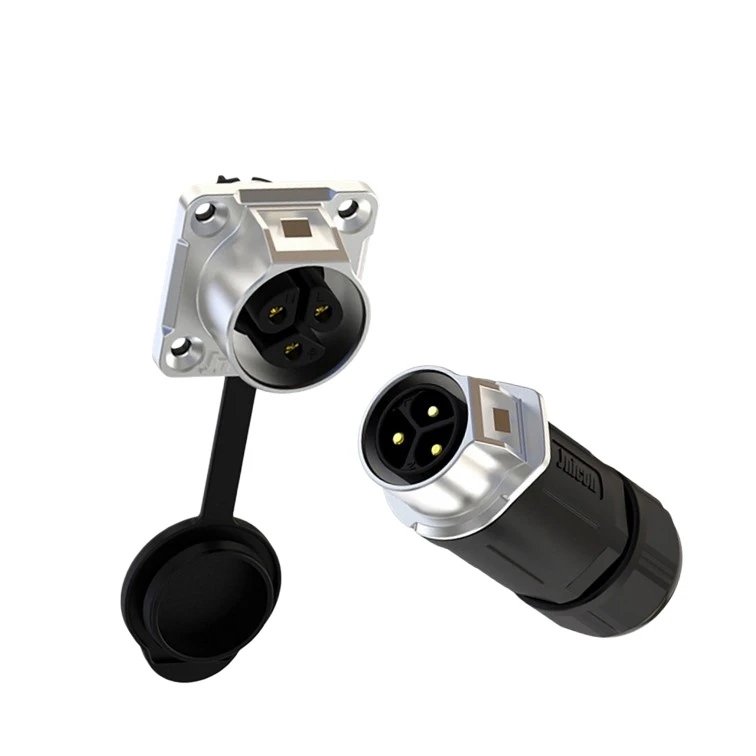

MJ24 3-Pin Waterproof Connector 50A Quick Lock for Industrial Power
50A quick-lock waterproof connector for industrial power and automation, with IP67 protection and reliable performance.

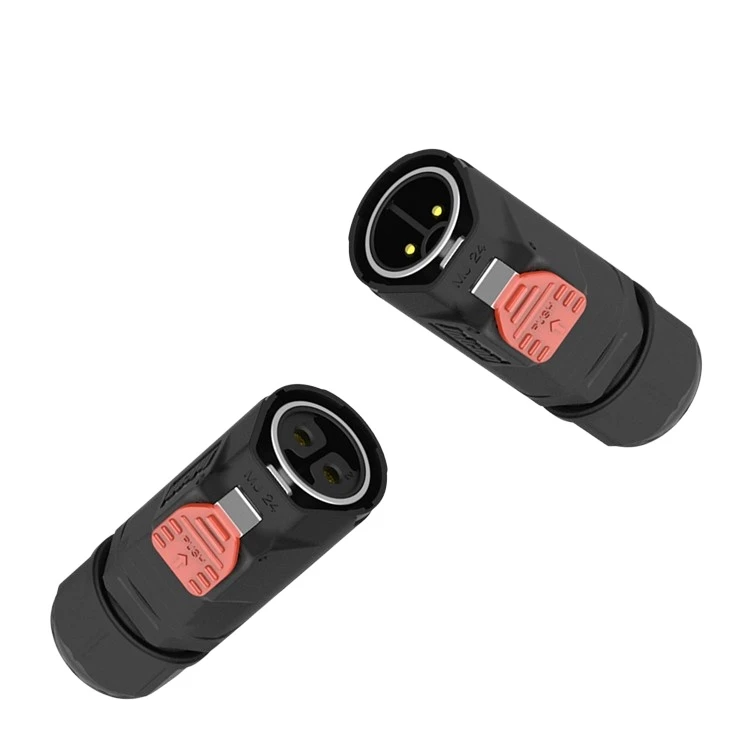

MJ24 2-Pin Waterproof Connector 50A Quick Lock for LED Lighting
