The Ultimate Factory Guide to Selecting a Waterproof Connector

Industrial downtime costs factory operations millions of dollars annually. When evaluating hardware for harsh environments, a standard interconnect configuration simply cannot withstand systemic moisture ingress, chemical washdowns, or thermal expansion. For original equipment manufacturers (OEMs), automation engineers, and project procurement managers, sourcing a high-performance waterproof connector is not just about choosing a component—it is about securing systemic reliability, protecting expensive machinery, and optimizing long-term lifecycle endurance.

This technical guide provides an exhaustive engineering breakdown of heavy-duty waterproof interconnect architectures, ingression standards, locking topologies, and manufacturing baselines. Whether your factory is building multi-megawatt battery energy storage systems (BESS), rugged commercial UAV equipment, or extreme marine telemetry runs, this blueprint will help you cross-reference engineering metrics to select the ideal rugged connectivity solution.

The primary benchmark for any waterproof connector is its Ingress Protection (IP) rating, governed by international IEC standards. For factory-level deployments, the second digit—representing liquid ingress barriers—directly dictates field survivability. Selecting an insufficient rating causes water vacuum siphoning, structural contact corrosion, and terminal shorts. Conversely, over-specifying inflates bill-of-materials (BOM) budgets unnecessarily.

Understanding the clear thresholds between industrial IP metrics ensures long-term operational success:

IP67 Waterproof Rating: Temporary Immersion Boundaries

An IP67 rated interface is engineered to withstand brief exposure to environmental liquids and transient submersion without compromising signal or power paths.

• Immersion Depth: Up to 1 meter of static water.

• Immersion Duration: Maximum of 30 minutes.

• Typical Factory Deployments: Outdoor commercial lighting arrays, field-level sensor nodes, automated terminal blocks, and standard outdoor EV charging connector points.

• Engineering Reality: Ideal for equipment subjected to heavy rain, seasonal condensation, or accidental splashes, but entirely unsuited for pressurized cleaning or continuous submersion.

IP68 Waterproof Rating: Continuous Underwater Pressure

An IP68 waterproof connector represents the heavy-duty workhorse of extreme industrial deployment, engineered to survive prolonged immersion under substantial hydraulic pressure.

• Immersion Depth: Manufacturer-specified under strict testing parameters (typically ranging continuously from 1.5 meters down to 10 meters).

• Immersion Duration: Continuous, indefinite submersion under defined pressure boundaries.

• Typical Factory Deployments: Marine connector telemetry networks, deep-sea exploration rigs, underwater pumping equipment, and modern outdoor energy storage connector matrices.

• Engineering Reality: Relies on precision-molded internal O-rings, high-density fluorosilicone seals, and chemical-bonded overmolding matrices to prevent capillary water siphoning under prolonged vacuum states.

IP69K Waterproof Rating: High-Pressure Thermal Washdowns

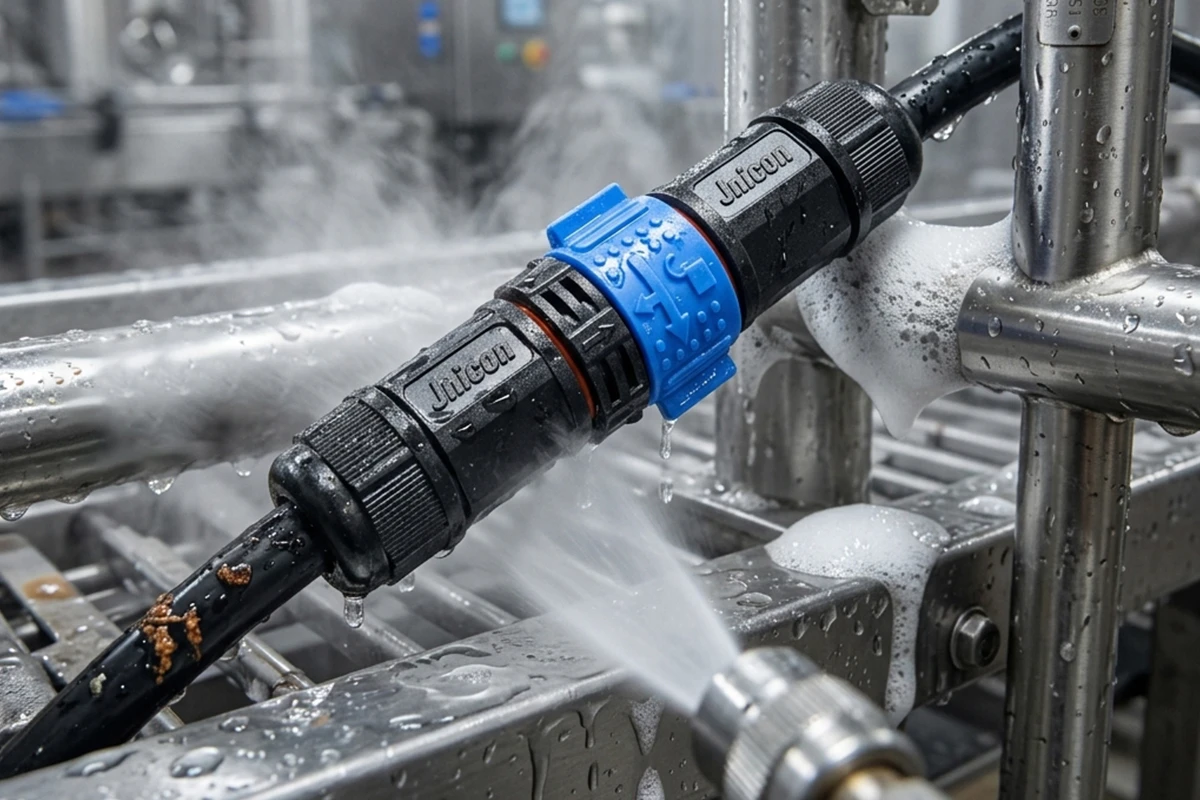

The IP69K standard is completely separate from deep submersion metrics. It certifies that a component can survive aggressive, high-pressure, high-temperature cleaning procedures typical of high-sanitation environments.

• Water Pressure Threshold: Up to 1450 psi (9.9 to 10 MPa).

• Water Temperature: Up to 80°C (176°F).

• Volumetric Flow Rate: 14 to 16 liters per minute, delivered via multi-angle spray nozzles.

• Typical Factory Deployments: Food and beverage processing lines, pharmaceutical manufacturing conveyors, heavy mining equipment, and commercial vehicle chassis washing bays.

• Engineering Reality: Demands high-performance imported engineering plastics like PA66 or specialized PBT compounds to resist thermal shock, chemical degreasers, and surface erosion.

Beyond specialized material sealing grids, a waterproof connector must maintain solid contact compaction despite continuous physical pulling, multi-axis machine vibrations, or sudden heavy impacts. The physical mechanism that couples male and female terminal bodies directly determines the interface's dynamic reliability.

Screw Lock Topology: Maximum Torque and Pull Resistance

The traditional screw lock mechanism utilizes precision-machined or injection-molded physical threads to couple the connector housings.

• Advantages: Exceptionally high pull-force tolerance; highly resistant to axial stress and chronic low-frequency vibrations.

• Best Used For: Permanent or semi-permanent connections, such as main heavy-duty power lines or structural marine connector runs.

• Disadvantages: Slower manual installation turnaround; risks thread stripping if overtightened during field deployment.

Quick Lock & Push Lock Systems: Rapid Deployment Efficiency

Modern push lock and quick lock systems allow field technicians to mate and lock an interface securely within seconds, often with an audible "click" confirmation.

• Advantages: Drastically cuts field integration labor costs; entirely eliminates human error regarding torque settings.

• Best Used For: Automated production lines, portable testing equipment, and dense modular configurations.

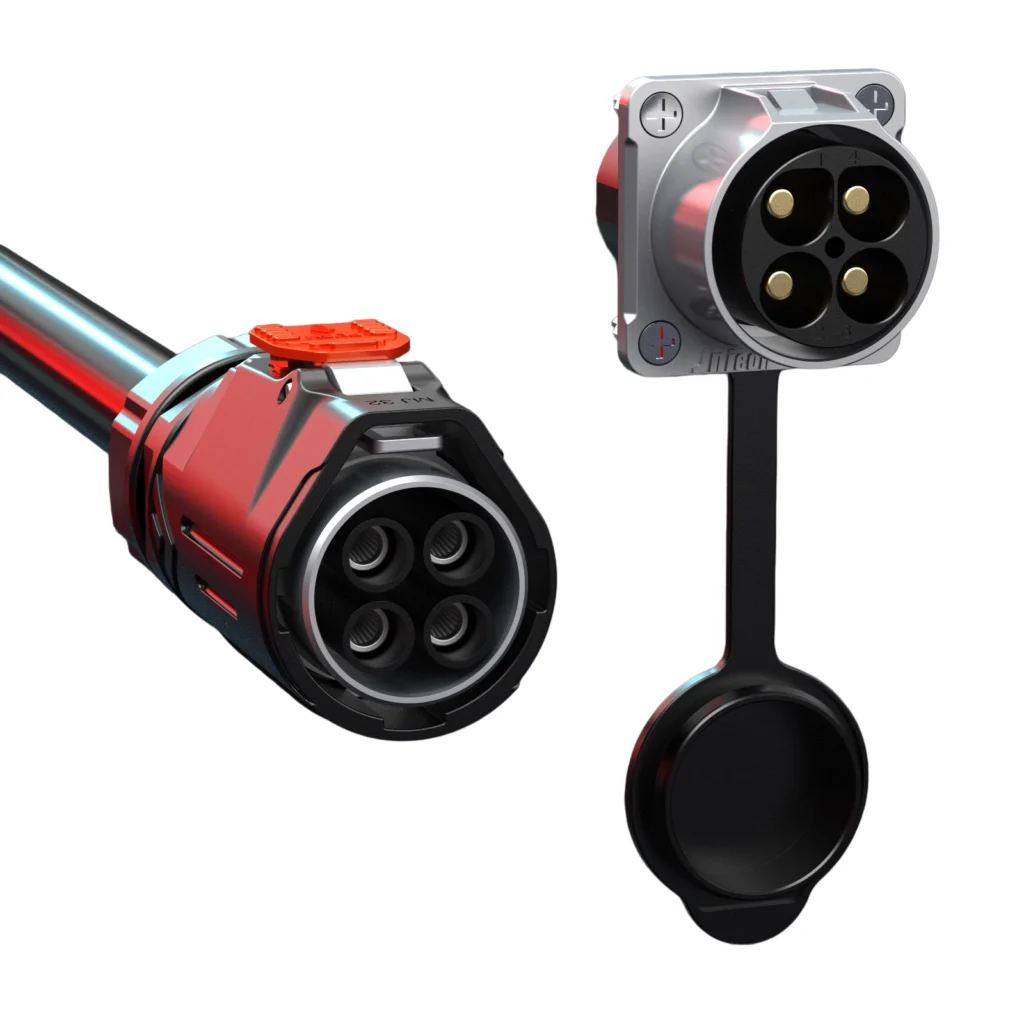

• Our Advantage: Our specialized MJ series leverages a proprietary quick lock system designed to achieve a certified IP67/IP68 seal instantly with a single push action.

Bayonet Lock & Push-Pull Mechanics: High-Vibration Security

Bayonet locks couple via a swift quarter-turn rotation over internal pins, while push-pull mechanisms secure automatically upon linear insertion and disengage via pulling the outer sleeve jacket.

• Advantages: Absolute immunity to rotational loosening caused by high-frequency dynamic vibrations.

• Best Used For: Robotic arm routing, commercial drone networks, and precision automated machinery setups utilizing our specialized M series circular product lines.

For most automated manufacturing facilities, purchasing a standalone waterproof connector plug and requiring field technicians to manually cut, strip, crimp, and heat-shrink internal wires on-site introduces massive failure risks. Manual field wire terminations are prone to variable crimping forces, microscopic air gaps, and irregular seal seating.

Implementing a factory-built custom cable assembly provides significant advantages:

1. True Anti-Siphon Ingress Barriers: Factory-level low-pressure overmolding infuses liquid polymer around the outer wire jacket and the plug body, establishing a permanent molecular bond. This hermetic matrix stops internal vacuum siphoning completely.

2. IPC-A-620 Certified Crimping: Automated stripping and termination machinery ensures optimal, gas-tight contact compaction on every internal conductor pin, eliminating high contact resistance and accidental terminal pullouts.

3. Turnkey Deployment Efficiency: Multi-branch splitter wire harness layouts are delivered to your production floor 100% pre-tested and ready to drop into automated equipment enclosures, cutting manual integration labor costs significantly.

When global tier-1 supply chains evaluate new suppliers for an industrial waterproof connector project, compliance certificates are mandatory requirements. Uncertified connectivity components introduce severe liability risks, including sudden insulation breakdown, catastrophic electrical fires, and immediate customs rejection at international borders.

UL Certification (Underwriters Laboratories)

UL safety standards validate that an interconnect component can safely handle its rated maximum electrical current and voltage limits without experiencing hazardous thermal runaway or material ignition. For heavy-duty high current connector models, look for explicit UL compliance ensuring robust flame-retardant performance under continuous operations.

TUV Certification

TUV testing verifies strict adherence to European international safety, durability, and functional engineering benchmarks. A TUV certified waterproof component confirms that the manufacturer's specified IP ratings, operational cycle lifespans, and thermal tolerances have been independently validated through ruthless laboratory stress testing.

By procuring exclusively UL certified and TUV certified interconnect components, industrial buyers safeguard their machinery assets, meet strict national grid integration criteria, and streamline global compliance audits effortlessly.

To assist procurement engineers and system designers with immediate component selection, this technical reference matrix maps out critical performance metrics across distinct application environments:

Selecting the right waterproof connector configuration requires carefully balancing environmental sealing, robust mechanical locking systems, material integrity, and strict global certifications. Settling for lower-grade connectivity components directly compromises your equipment's field reliability, leading to costly unexpected downtime and field failures.
