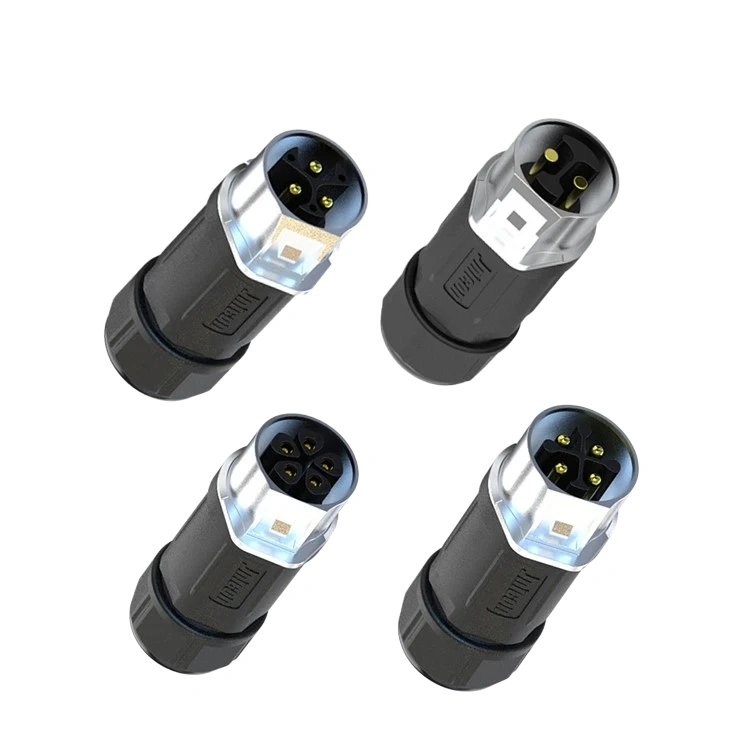

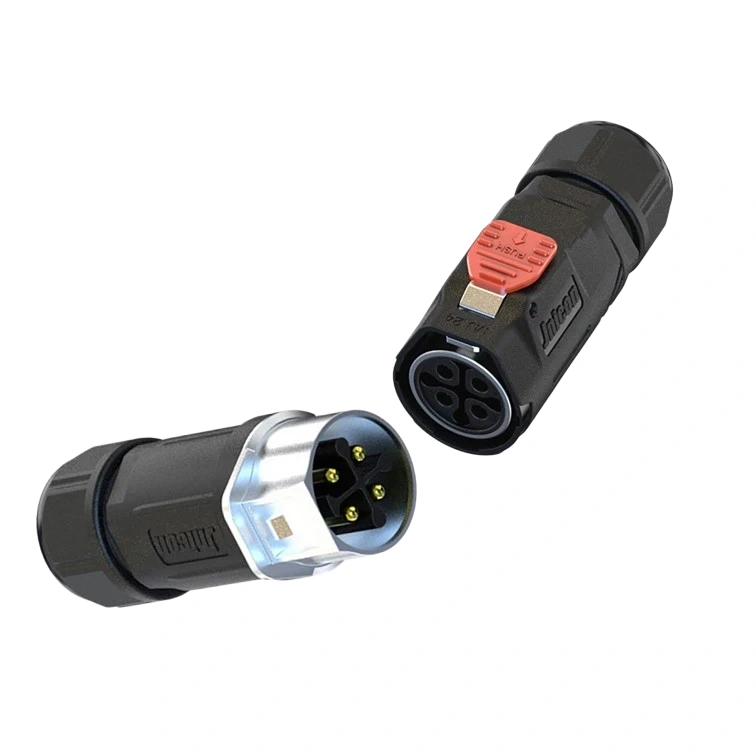

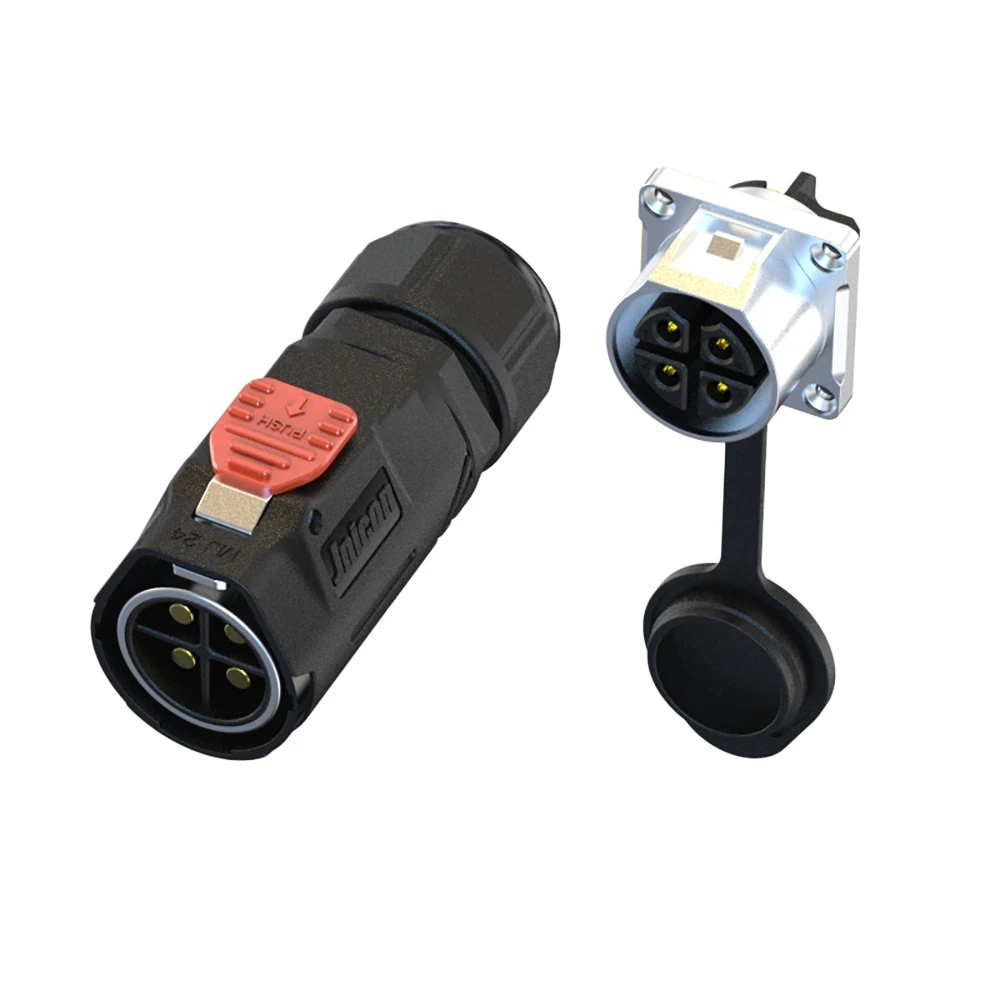

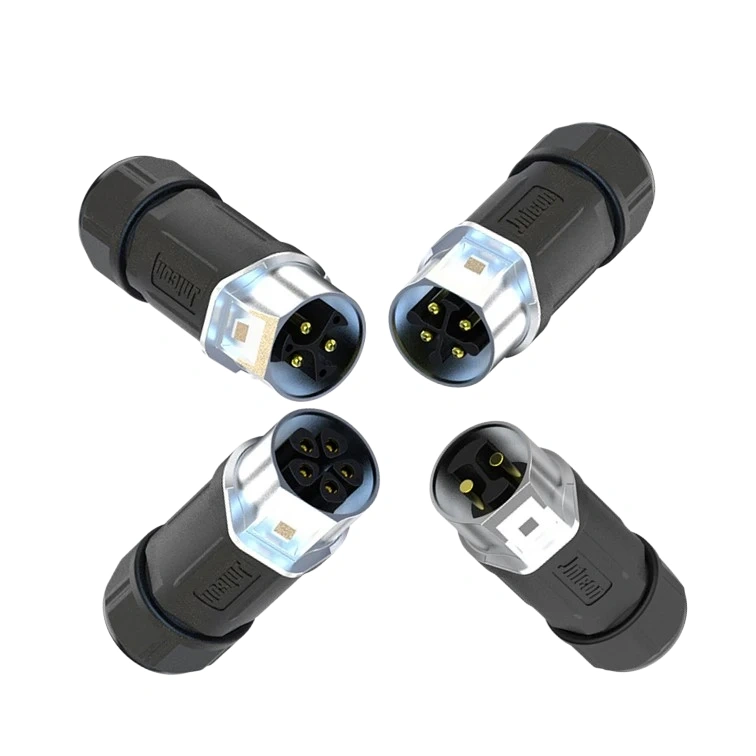

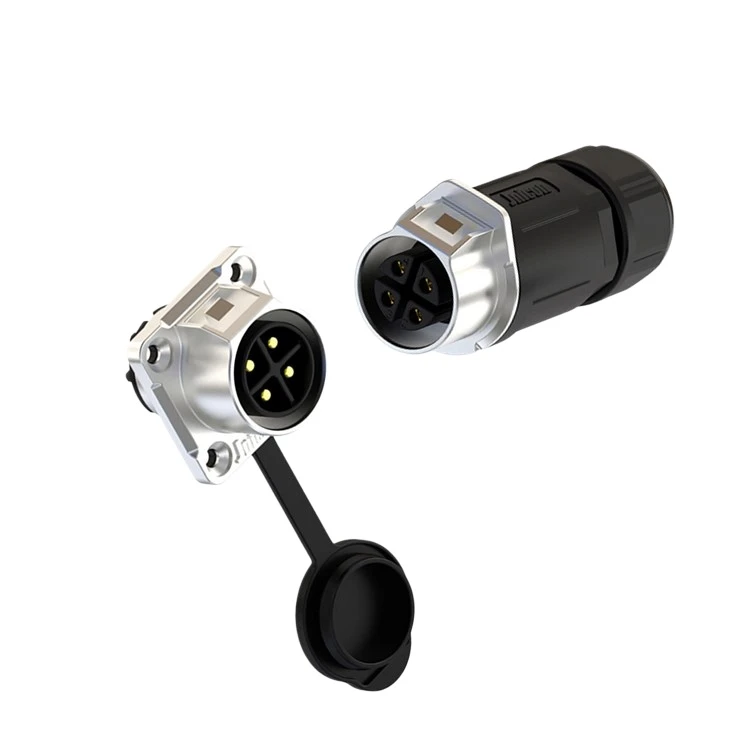

MJ24 4-Pin Waterproof Connector 30A Quick Lock for Control Systems

MJ24 4-Pin Waterproof Connector 30A Quick Lock for Control Systems

30A quick-lock waterproof connector for control systems and industrial automation, with IP67 protection.

Get a Free Sample

Product Overview

  • 30A Current Capacity – 30A rated current with silver-plated copper pins for stable power transmission.

  • Quick Lock Mechanism – Tool-free connection with audible click feedback, anti-vibration design.

  • IP67 Waterproof – Fully sealed against water and dust, suitable for industrial and outdoor use.

  • Control System Ready – Designed for control panels, automation equipment, and signal distribution.

  • Global Certifications – UL, TUV, CE, and RoHS certified.

Product Specifications

Product Details Specification 1 Specification 2 Specification 3 Specification 4 Specification 5
Pin number 2 Pin 3 Pin 4 Pin 5 Pin 2+5 Pin
Pin diameter X number 3.6mm 3.6mm 2.7mm 2.7mm 3.6+1.0mm
Current rating 50A 50A 30A 30A 50A+5A
Voltage rating 300V 300V 300V 300V 300V+60V
Withstanding voltage 2000V 2000V 1500V 1500V 1500V
Cable Gauge 1.5mm²–6mm²(16–9AWG) 1.5mm²–6mm²(16–9AWG) 1.0mm²–4mm²(18–12AWG) 1.0mm²–4mm²(18–12AWG) 1.0mm²–4mm²(18–12AWG)
Diameter Range MAX Φ16.0mm MAX Φ16.0mm MAX Φ16.0mm MAX Φ16.0mm MAX Φ16.0mm
Protection Level IP67 IP67 IP67 IP67 IP67
Connecting mode QuickLock QuickLock QuickLock QuickLock QuickLock
Prevent the combustion level UL94-V0 UL94-V0 UL94-V0 UL94-V0 UL94-V0
Operating temperature -40℃ – 105℃ -40℃ – 105℃ -40℃ – 105℃ -40℃ – 105℃ -40℃ – 105℃
Certification ISO9001, CE, UL, ROHS ISO9001, CE, UL, ROHS ISO9001, CE, UL, ROHS ISO9001, CE, UL, ROHS ISO9001, CE, UL, ROHS

Resource Downloads

Specification for MJ24 series

Download

Product Advantages

High-Reliability Waterproof & Dustproof Protection

High-Reliability Waterproof & Dustproof Protection

All products in our series feature high-reliability waterproof and dustproof protection. IP67 certified models withstand temporary immersion up to 1 meter for 30 minutes. IP68 certified models are designed for prolonged submersion in demanding environments (specific depth and duration refer to product datasheet). For applications requiring frequent high-pressure high-temperature washdown — such as food processing, agricultural machinery, and heavy equipment — IP69K protection is available as a customizable option.

Note: IP69K is an optional custom feature and is not standard across all models.


Wide Operating Temperature Range

Wide Operating Temperature Range

Our connectors operate reliably across a broad temperature range from -40°C to +105°C (with certain energy storage series reaching up to +125°C). This ensures stable performance in extreme climates — from freezing winters to scorching summers — making them suitable for desert, snowy, high-altitude, and other harsh environmental conditions.


High-Strength Flame-Retardant Housing

High-Strength Flame-Retardant Housing

The housing is constructed from high-performance engineering plastic with UL94 V-0 flame-retardant certification, ensuring self-extinguishing properties in case of fire. The structural design also provides impact resistance, protecting internal precision terminals from accidental collisions and mechanical shocks in industrial environments.

High Mating Cycle Durability

High Mating Cycle Durability

Our connectors are rated for 500+ mating cycles, validated through rigorous plug-and-unplug testing. In frequent connection and disconnection scenarios, they maintain stable contact performance and consistent electrical reliability — effectively reducing maintenance frequency and replacement costs over the product lifecycle.
